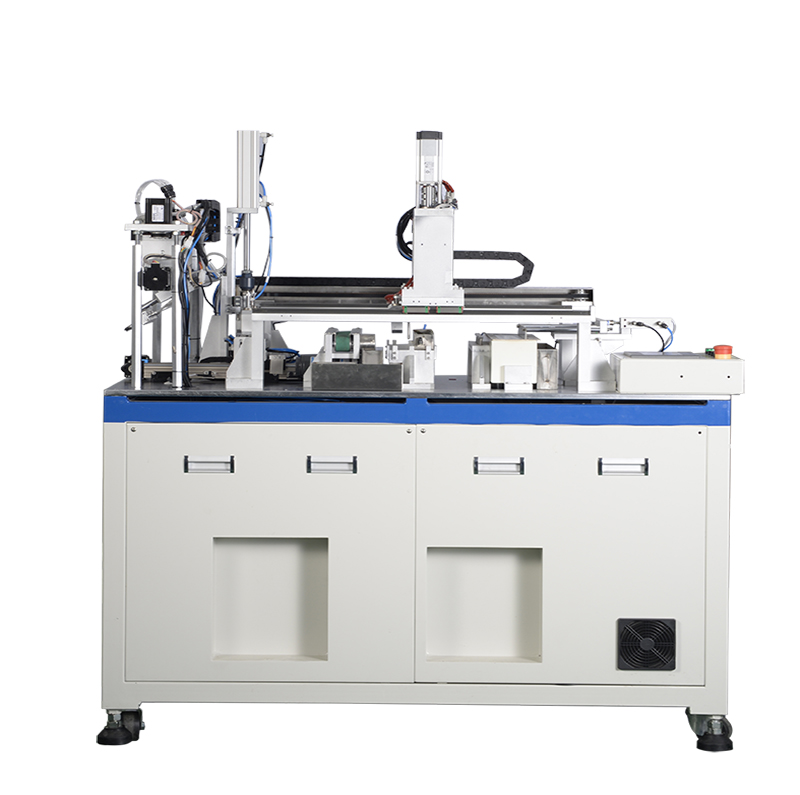

Soldering Machine
Model: AM-HX-10
JDL soldering machine is perfect for inductors for soldering and tin pressing. It is optional in feeding by winding machine and can be configured to inductor processing lines. It adopts manipulator for products taking and soldering.
Features:
- Traditional manual soldering technology, together with added tin pressing function, ensures the product flatness.
- This soldering machine has simple structure, strong reliability and easy maintenance.
- This machine features easy operation, fast programming and convenient using.
- Other functions can also be discussed and confirmed in advance depending on customer requirements.
Technical Parameters
| Application | Ferrite core inductor |
| Feeder | 6 spindles winding machine |
| Control system | PLC |
| Capacity | 1.8-2.4Kpcs/h |
| Dimensions(mm) | 1350*750*1600mm (L*W*H) |
| Air supply | 0.5-0.7Mpa |
| Working environment | -5℃-50℃(No corrosive gas, harmful gas, flying dust, etc.） |
| Power supply | Single phase AC220V/50HZ |
| Power consumption | 2kW |
| Net Weight | 240kg |
