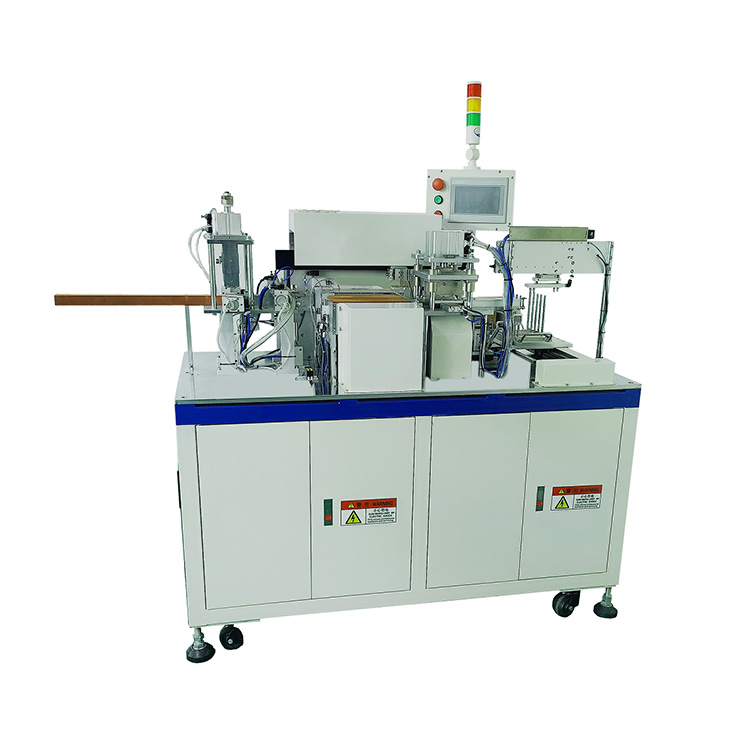

Bending and Forming Machine

Bending and Forming Machine
Model: AM-ZWCX-10

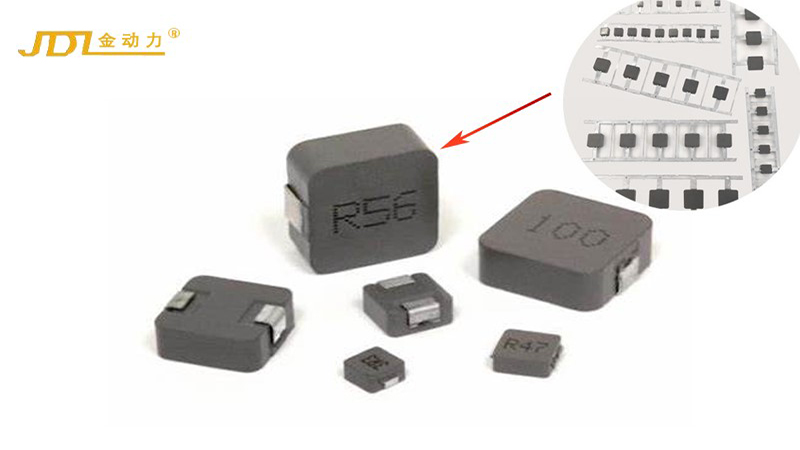

JDL bending and forming machine is optional tape tearing machine feeding, manual feeding or cartridge holder loading. And it equips a magazine for material receiving. This machine performs cutting and bending of terminals of electronic components, plus gluing them on the electronic components. It can be configured to different product lines, offering high output and stable performance.

  • Bending and Forming Machine
Product Details:
  • Bending and Forming Machine
  • Bending and Forming Machine
  • Bending and Forming Machine
  • Bending and Forming Machine
Technical Parameters
Numbers of inductors formed at one time 2-8pcs
Length accuracy ±0.1mm
Capacity 4-15Kpcs/h
Dimensions(mm) L1200*W900*H1000mm
Air supply 0.5-0.7Mpa
Working environment -5℃-50℃(No corrosive gas, harmful gas, flying dust, etc.）
Power supply Single phase AC220V/50HZ
Power consumption 1kW
Weight About 300kg
Configuration Information
Bending and forming machine can match with tape tearing machine, featuring high output, stable performance and various loading modes.
Receiving method: magazine (following customer requirements)
