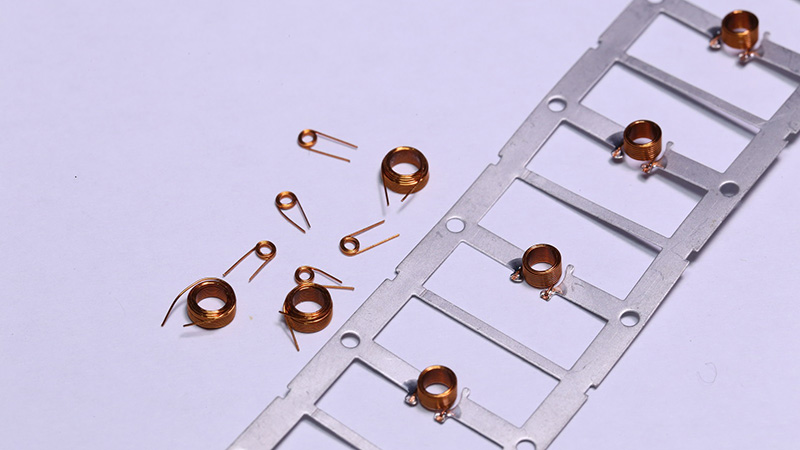

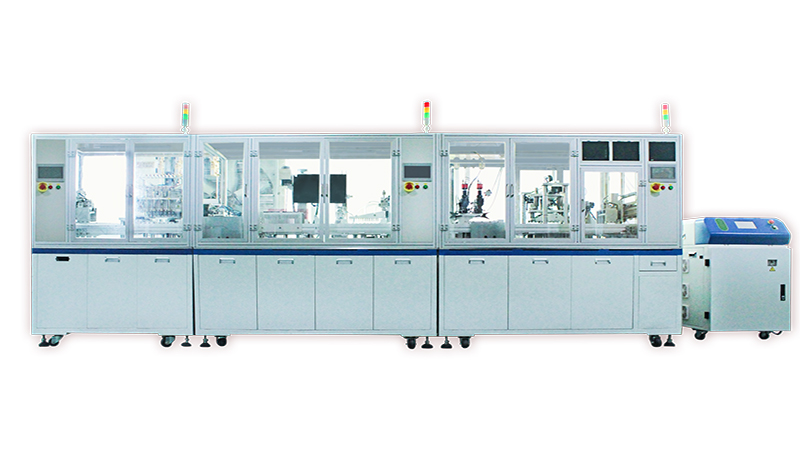

This winding machine is used for winding wires on molded inductor. It's designed with several functions such as winding, wire cutting, stripping, welding and visual inspection. Applicable wire types include round, flat wire, etc.

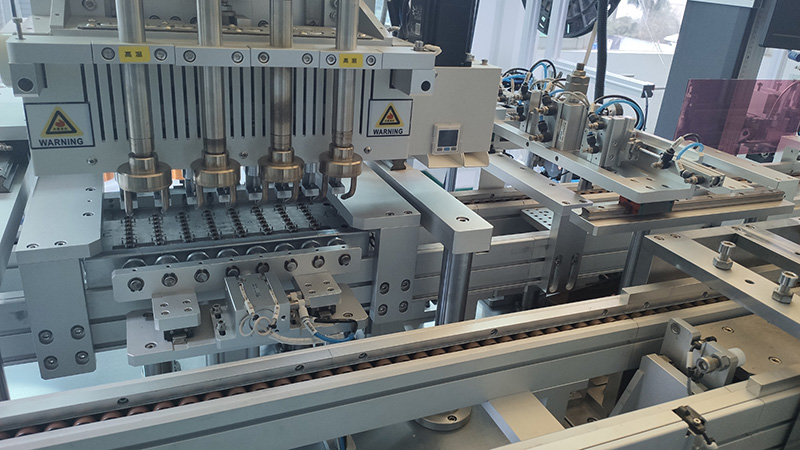

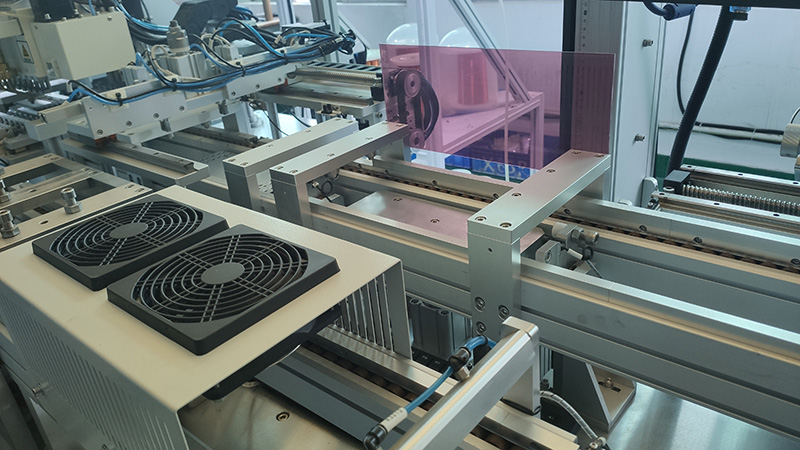

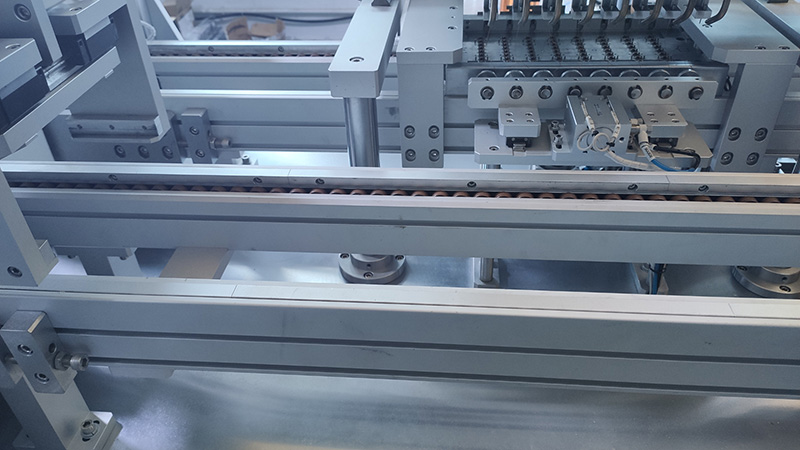

Winding Mode | inside/outside winding |
Number of Winding Spindles | 8 Spindles |
Applicable Wire Diameter | 0.09-0.5mm |
Applicable Wire Layers | even number of coil layers |
Stripping Mode | Laser Stripping |
Copper Sheet Loading Mode | Automatic cutting and loading |
Welding Mode | Laser Welding |
Unloading Mode | Automatic conveying into magazine |
Jig Operation Mode | Multi-jigs circulation conveying by means of chain conveyor |

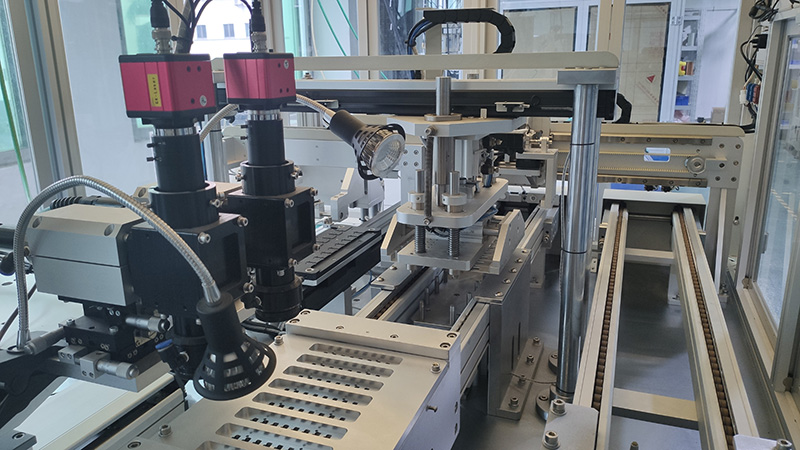

Wire Detection | CCD visual inspection |
Machine Capacity | 4-5.5 Kpcs/H |
Working Environment | -5 ℃ ~ 50 ℃ (no corrosive and harmful gas, no dust and other harsh environments) |
Operation and Control Mode | Imported PLC control system, intuitive HMI screen for easy operation |
Machine Size | L4690mm*W2200mm*H2000mm |
Power Supply | single-phase AC220V, 50HZ |
Air Supply | 0.5 ~ 0.7MPa |
Power | 8 KW |
Machine Weight | about 1100KG |
