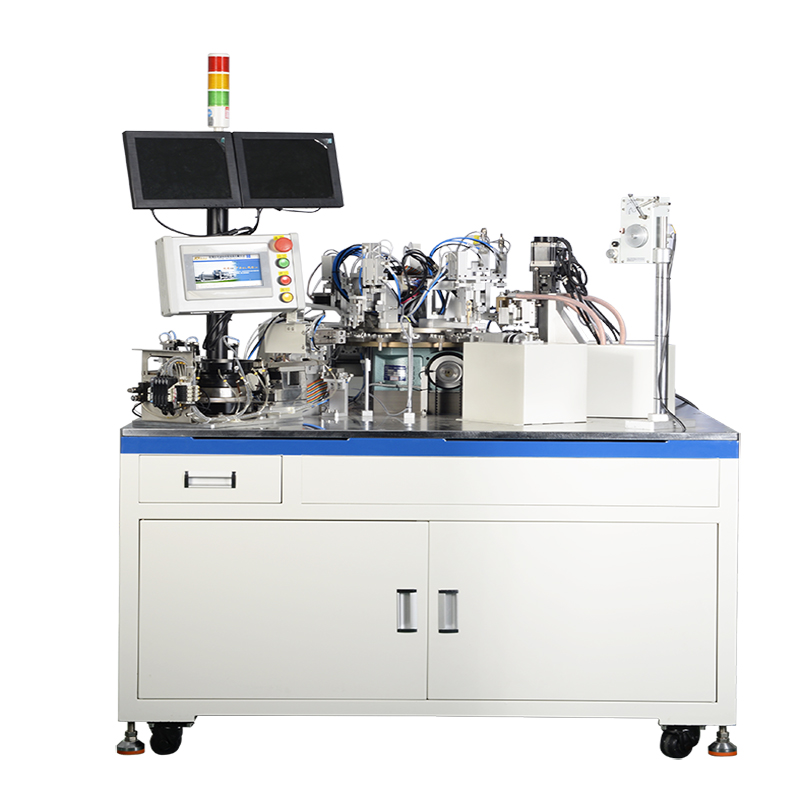

NR Series Winding Machine
JDL’s NR series winding machine is specially manufactured for the winding of ferrite core inductors. Equipped with side edge soldering function, it supports simultaneous winding and soldering, with a winding speed of 2000rpm. Applicable wire diameter is 0.02-0.12mm. PLC control allows for accurate counting and simple operation. Flexible unloading methods come in discharging in trays or directly.

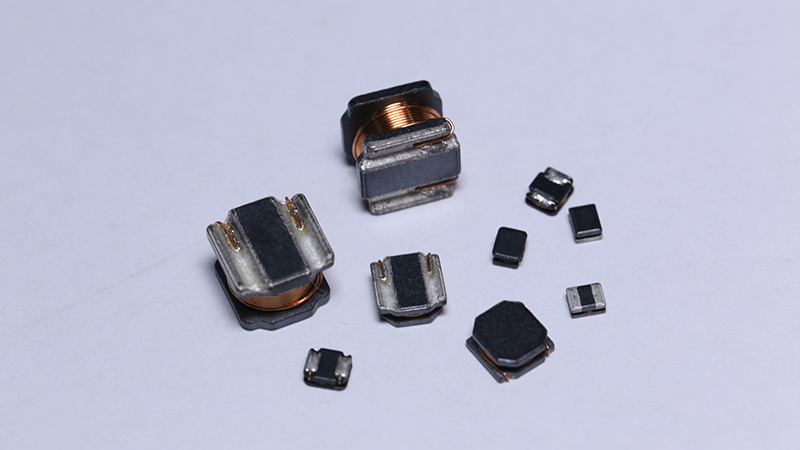

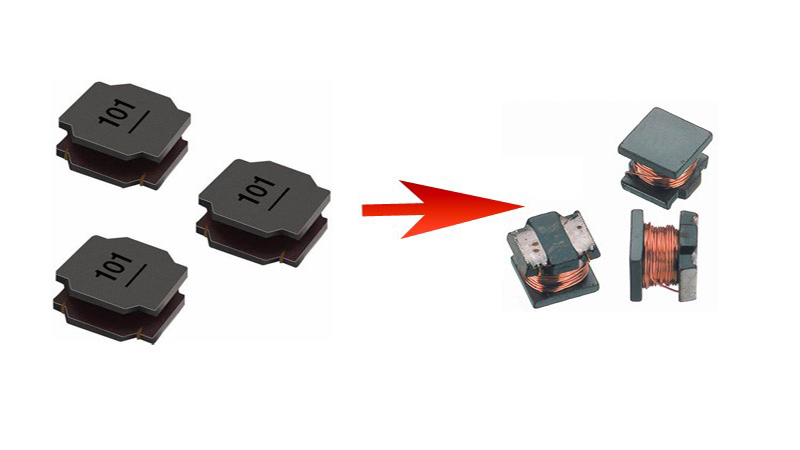

| Application | Ferrite core inductor |
| Feeder | Vibratory bowl feeder |
| No. of spindles | 1 |
| Winding method | Single Winding |
| Wire size | 0.02-0.12mm |
| Max. Winding Speed | 2000rpm/min |
| Control system | PLC |
| Capacity | 1.8-2.2Kpcs/H |
| Dimensions(mm) | L1350*W1300*H1550mm |
| Air supply | 0.5-0.7Mpa |
| Working environment | -5℃-50℃(No corrosive gas, harmful gas, flying dust, etc.） |
| Power supply | Single phase AC220V/50HZ |
| Power consumption | 6.5kW |
| Weight | 650kg |
