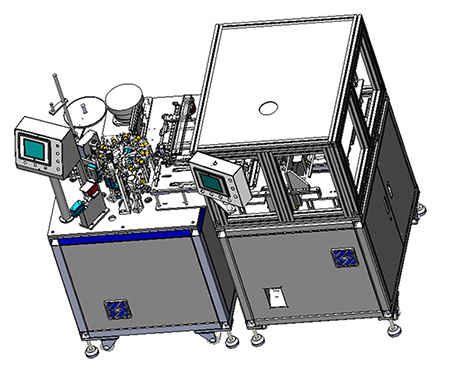

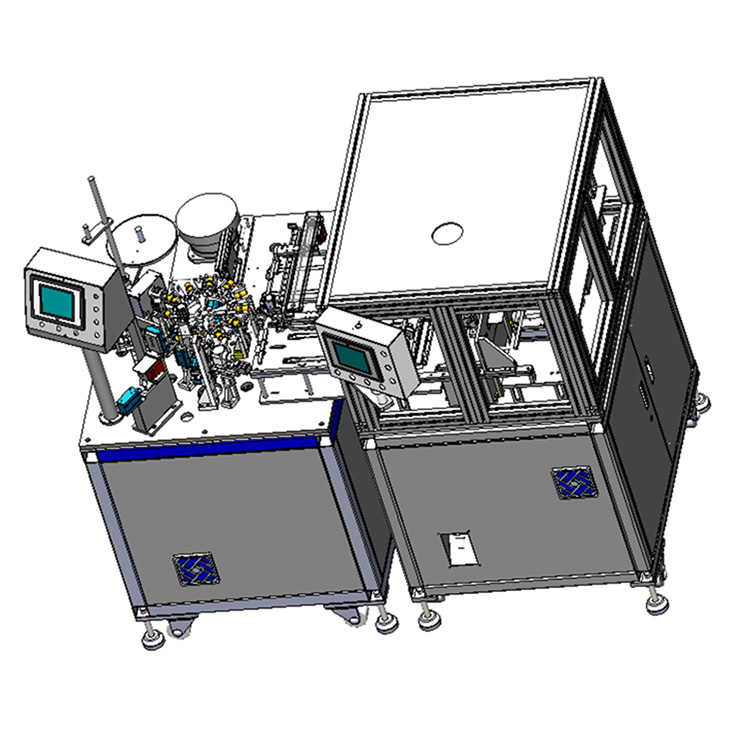

CD Series Winding and Soldering Machine
Model: AM-CDRX-11
JDL’s CD series winding and soldering all-in-one machine is suitable for the winding of CD series ferrite core inductors, also supporting soldering function. Applicable wire diameter is 0.08-0.35mm. PLC control guarantees accurate counting.
Technical Parameters
| Application | Ferrite core inductor |
| Feeder | Vibratory bowl feeder |
| No. of spindles | 1 |
| Winding method | Nozzle rotation |
| Wire size | 0.08mm-0.35mm |
| Control system | PLC |
| Capacity | 1000-2300 pcs/H |
| Dimensions(mm) | 1800mm*1000*1750mm (L*W*H) |
| Air supply | 0.5-0.7Mpa |
| Working environment | -5℃-50℃(No corrosive gas, harmful gas, flying dust, etc.） |
| Power supply | Single phase AC220V/50HZ |
| Power consumption | 2.5kW |
| Weight | 300kg |
| Bonding method | Soldering |
