Shielded Inductor Winding Machine

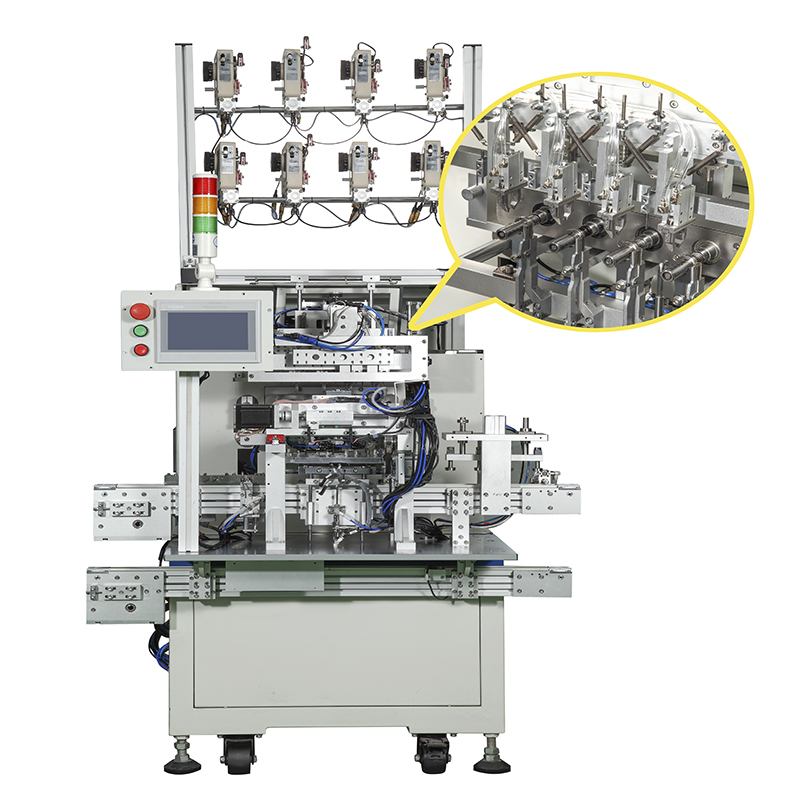

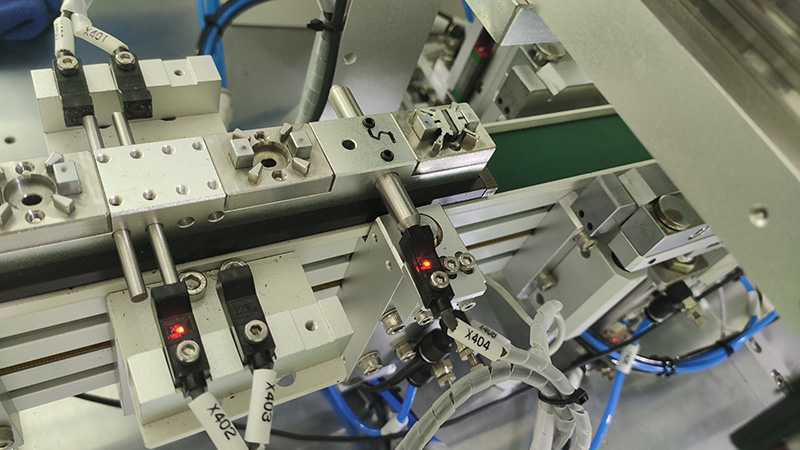

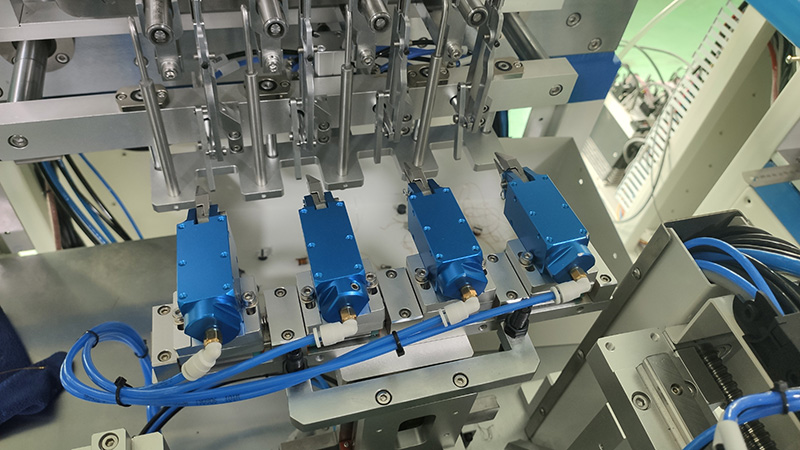

The coil winding machine is used for single wire or multi-strand winding on shielded inductor. This shielded inductor winding machine adopts tray feeding, optional in other feeding types. The diameter of wound wire features a range from 0.1m to 0.35mm. The max. production capacity reaches up to 500 pieces/h. The coil winding equipment is designed with a precise counting device and braking device with an alarm system, ensuring precise counting and safe operation.
| Application | Shielded inductor |
| Feeder | Pallet/Fixture |
| No. of spindles | 4 |
| Winding method | Winding by spindle rotation |
| Wire size | 0.1m-0.35mm |
| Control system | PLC |
| Capacity | 300-500pcs/h |
| Dimensions(mm) | W1200*W700*H2000mm |
| Air supply | 0.5-0.7Mpa |
| Working environment | 0-50℃(No corrosive gas, dust, etc.） |
| Power supply | Single phase AC220V/50HZ |
| Power consumption | About 3kW |
| Weight | 350kg |
JDL has devoted itself in the field of electric motor rewind, serving an extensive portfolio from coil winding equipment to electrical safety test equipment.
For over a decade, JDL has been specialized in manufacturing and supplying engineering solutions and equipment to the wire processing and electrical industries. We strive to pay close attention to the needs of our customers and move forward by designing and producing optimal winding machines and peripheral equipment.
