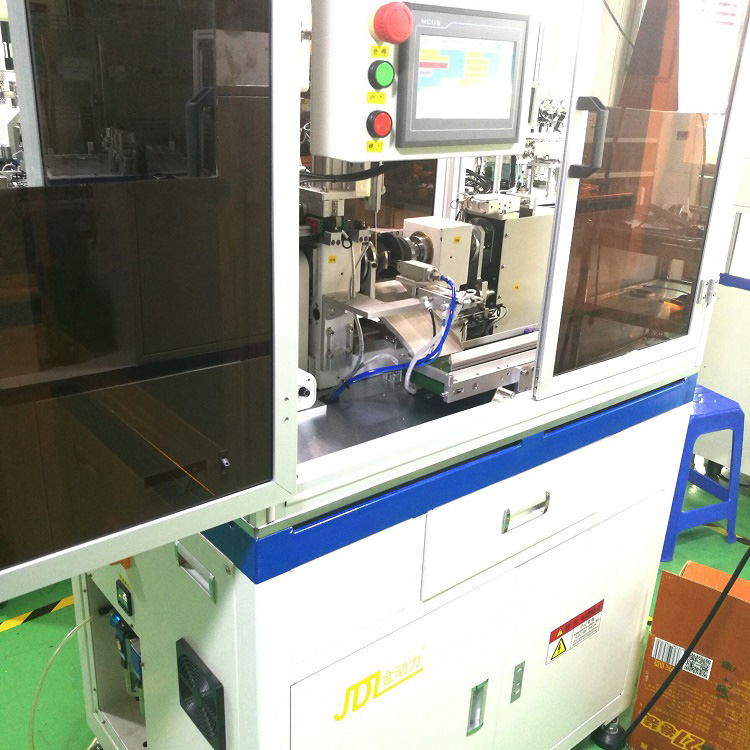

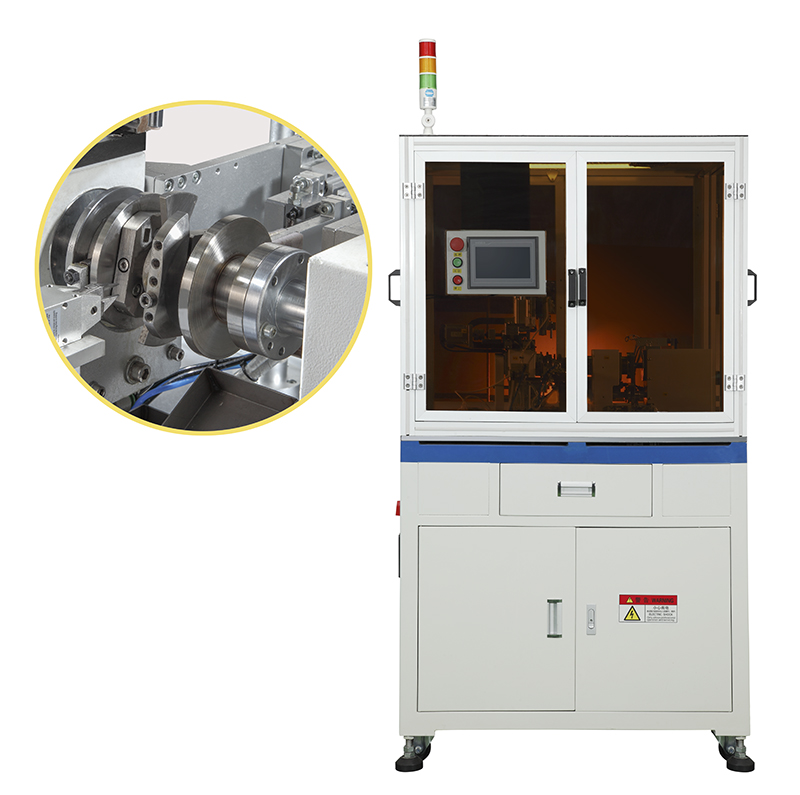

Wireless Charging Coil Winding Machine

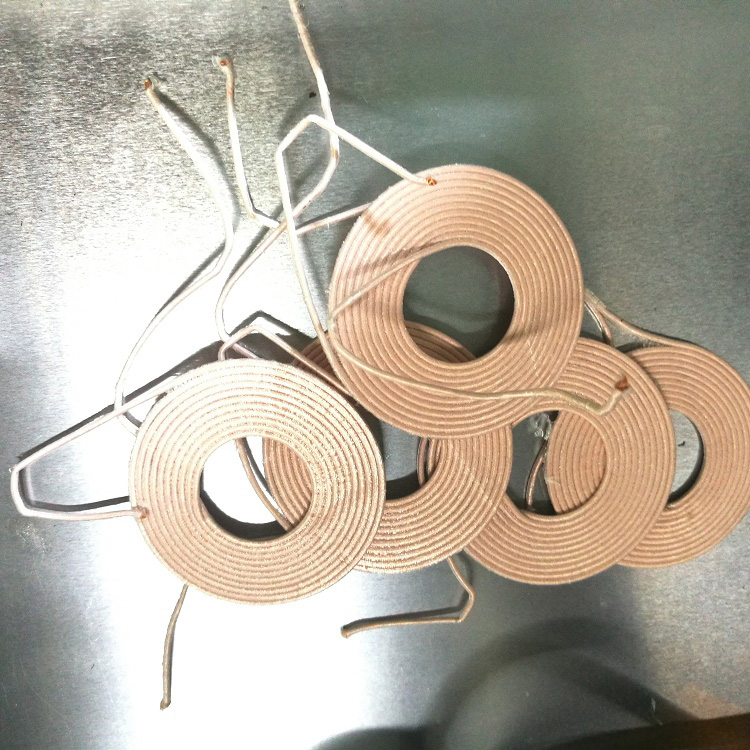

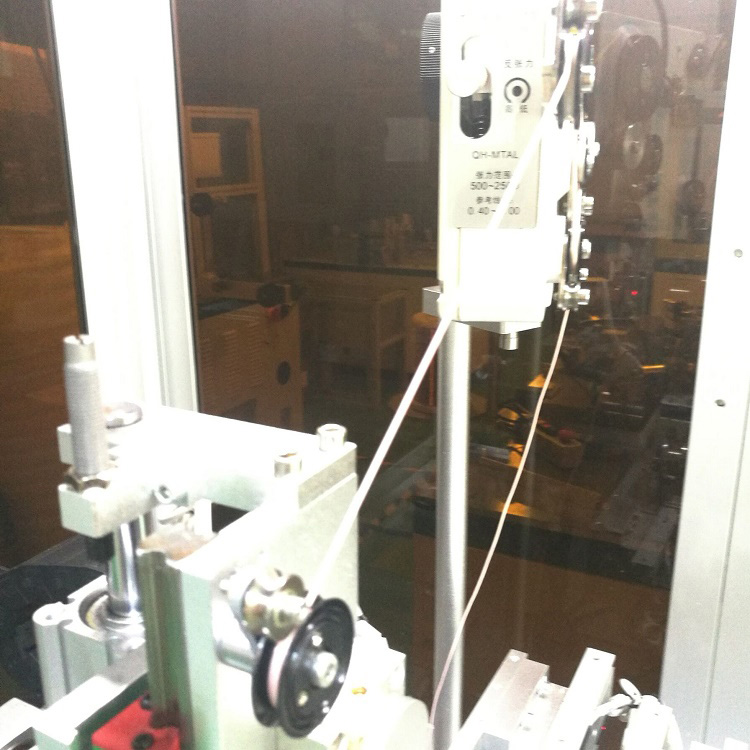

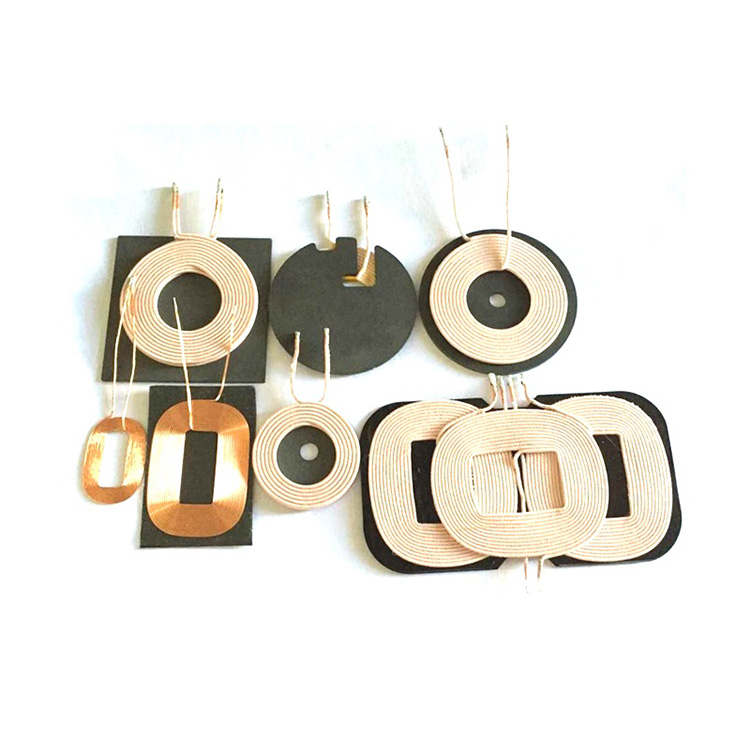

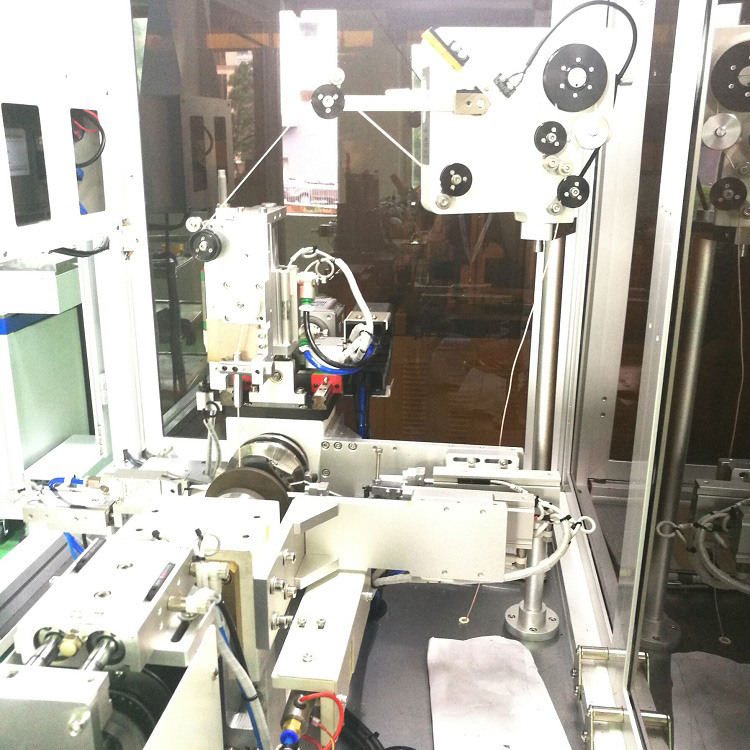

Featured with a tension feeder, the coil winding machine is specially designed for the winding of the wireless charging coil with different shapes. This machine features single layer winding, and Alpha winding is available upon request. The wire diameter ranges from 0.3 to 1.2mm. With a PLC control system, precise winding and counting is ensured. An emergency braking device with an alarm system provides great protection during the abnormal operation.
| Application | Wireless charging coil |
| Feeder | Tensioner |
| No. of spindles | 1 |
| Winding method | Alpha winding or single winding |
| Wire size | 0.3-1.2mm |

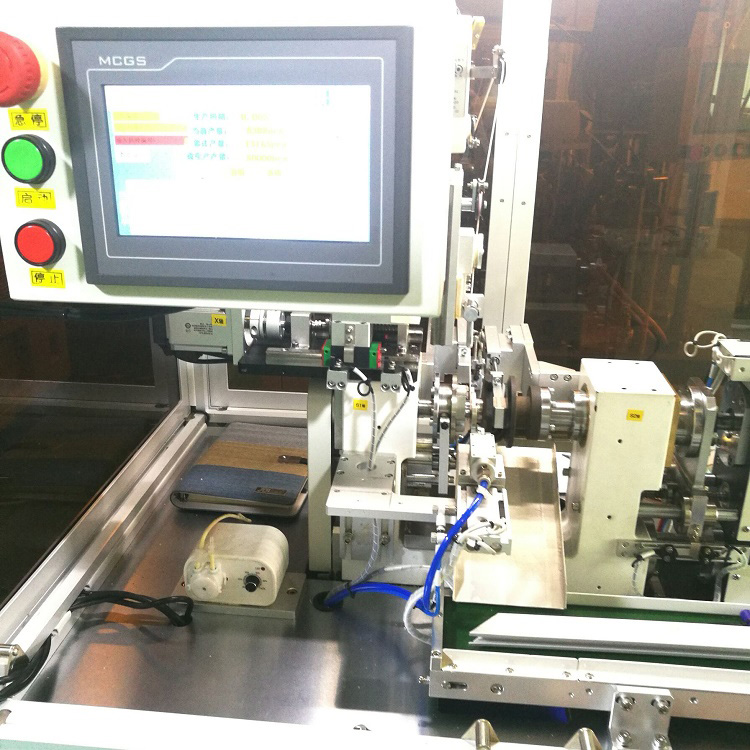

| Control system | PLC |
| Capacity | 280-380pcs/h(Alpha); 800-1000pcs/H(single) |
| Dimensions(mm) | 1000*700*1800mm(L*W*H) |
| Air supply | 0.4-0.6Mpa |
| Working environment | 0-50℃(No corrosive gas, harmful gas, flying dust, etc.） |
| Power supply | Single phase AC220V/50HZ |
| Power consumption | 3kw |
| Weight | 300kg |
JDL has devoted itself in the field of electric motor rewind, serving an extensive portfolio from coil winding equipment to electrical safety test equipment.
For over a decade, JDL has been specialized in manufacturing and supplying engineering solutions and equipment to the wire processing and electrical industries. We strive to pay close attention to the needs of our customers and move forward by designing and producing optimal winding machines and peripheral equipment.
