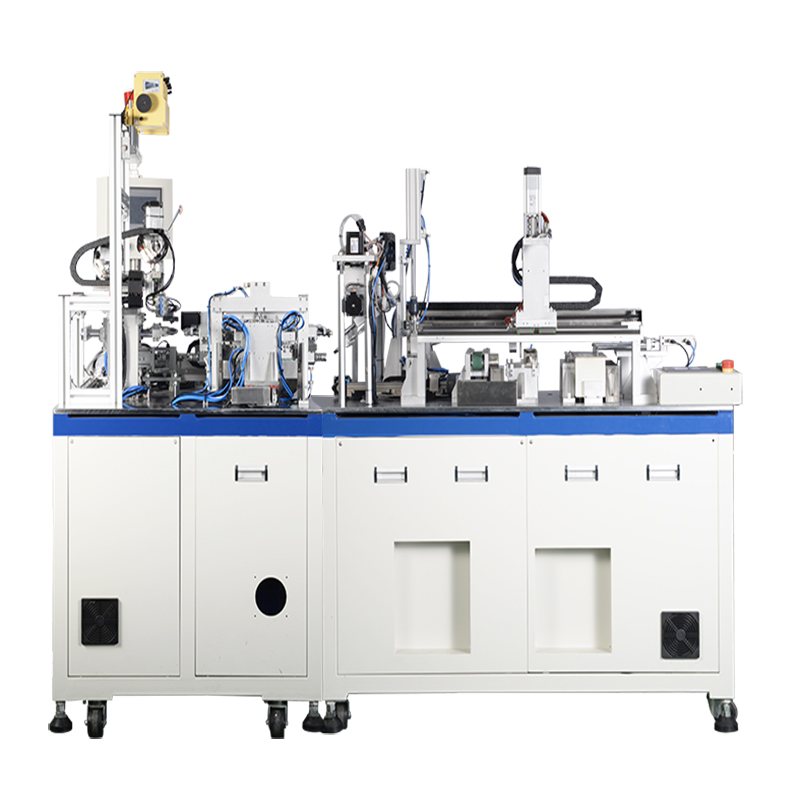

NR Series 6 Spindles Winding and Soldering Machine
JDL NR series 6 spindles winding and solderings machine is used to produce NR series SMD inductors. Features include automatic feeding, a winding speed of up to 2000rpm. It also supports soldering process after winding. Its spindles and XYZ axis are all driven by high performance servo motors, offering stable working performance. PLC control and color touch screen allows for simple and easy operation.
| Application | NR series ferrite core inductor |
| Feeder | Vibratory bowl feeder |
| No. of spindles | 6 |
| Winding method | Chuck rotation |
| Wire size | 0.08-0.22mm |
| Max. Winding Speed | 2000rpm/min |
| Control system | PLC |
| Capacity | 1.8-2.1Kpcs/H |
| Dimensions(mm) | L2300*W1350*H1600mm |
| Air supply | 0.5-0.7Mpa |
| Working environment | -5℃-50℃(No corrosive gas, harmful gas, flying dust, etc.） |
| Power supply | Single phase AC220V/50HZ |
| Power consumption | 5kW |
| Weight | 700kg |
